Data intelligence on-site

Accurate fault recognition and real time performance monitoring that guarantees smooth plant operation.

Unity SCADA Platform



Scalable & highly available IT architecture

Real-time monitoring


Analytics & Reporting


Web-based, accessible from anywhere, anytime

Cyber Security & Safety

Modular & extensible architecture

Well-defined interfaces based on web technologies

Easy to add new services and information elements

Intelligent monitoring

All major solar-plant related KPIs are supported by design

Truly centralized solution

Not just a remote login

Consolidates data from multiple sites

NOT a generic SCADA platform

Designed to fit remote sites monitoring and control needs

Visualize and explore the relative power and energy performance of all your assets.

PRODUCTION UNITS MONITORING

(STRINGS, INVERTERS)

MANAGEMENT OF AUXILIARY E/M EQUIPMENT

(PILLARS, SHELTER, CONDITIONERS, RAINWATER PUMPS, etc)

KEY PERFORMANCE INDEXES CALCULATION (IEC 61724)

REAL-TIME FAULT RECOGNITION

METEOROLOGICAL MEASUREMENTS

(SOLAR IRRADIATION – TEMPERATURE – WIND – RAIN, etc)

CCTV, PERIMETER SECURITY

(IR BEAMS, ACOUSTIC CABLE)

ELECTRICAL INSTALLATION & POWER FLOW

(MEASURING DEVICES, SUBSTATIONS, TRANSFORMERS, LV/MV SWITCHGEARS)
ENERGY STORAGE (ESS)

SUPPORT EQUIPMENTS FROM MULTIPLE VENDORS

INVERTERS, POWER METERS, PROTECTION DEVICES, WEATHER STATIONS DEVICES, VARIOUS SENSORS, E/M EQUIPMENT,  ENERGY STORAGE SYSTEMS (ESS), SWITCHGEARS, CAPACITOR BANKS

The highest level of data quality and performance.

* Design, build, test and maintain system hardware
* Flexible and cost-effective controller
* Secure network
* SCADA according to project requirements
* Sustainable network integration solutions

Main Substation Unit (MSSU)
Peripheral Substation Unit (PSSU)

Support of a variety of equipment
Modular system built around an embedded processor and various I/O units
Networked intelligent devices along with various sensors and actuators
Interfaces that include analog inputs and outputs, digital inputs and outputs, serial and Ethernet interfaces.

Solar PV monitoring for NA markets
Fully Integrated Solutions for Commercial & Industrial Projects

Compatible with Monitoring Platforms based on Campbell Scientific’s LoggerNet servers
Compatible with Inaccess UNITY Platform
Mobile-enabled web-based monitoring
Fault detection and alarms
Advanced reporting capabilities
Remote inverter control
Site-specific instrumentation



CSI website (https://www.campbellsci.com)

SCB

String Combiner Box

Individual string monitoring for fault recognition
Overvoltage protection
String comprehensive protection on the terminal
Accurate current measurements with average values
Standard communication with monitoring systems
Optimum results obtained by integrating with Unity SCADA
High-quality materials for reliable operation and long lifetime

Features

Combines 8, 12, 16 or 24 PV strings
Up to 1500V DC in measurement side
Integrated DC load disconnector
Integrated surge protection with monitored state
0-13.7A channel measurement range
1KHz sampling with on-board averaging
Internal temperature measurement
MODBUS over RS485 communication
IP66 rated polycarbonate enclosure

LPS

Local SCADA Server

Local SCADA is deployed to the solar plant and is responsible for the monitoring and control of the asset. It provides the graphical user interface (HMI). Primary data and alarms of all measured values are stored and processed to produce derived parameters and alarms
User-friendly and functional to ensure you have a structured overview on site with the same views as in the cloud-based control center.

Master Control Room Setup

UNITY SCADA PLATFORM

Monitoring system architecture & services

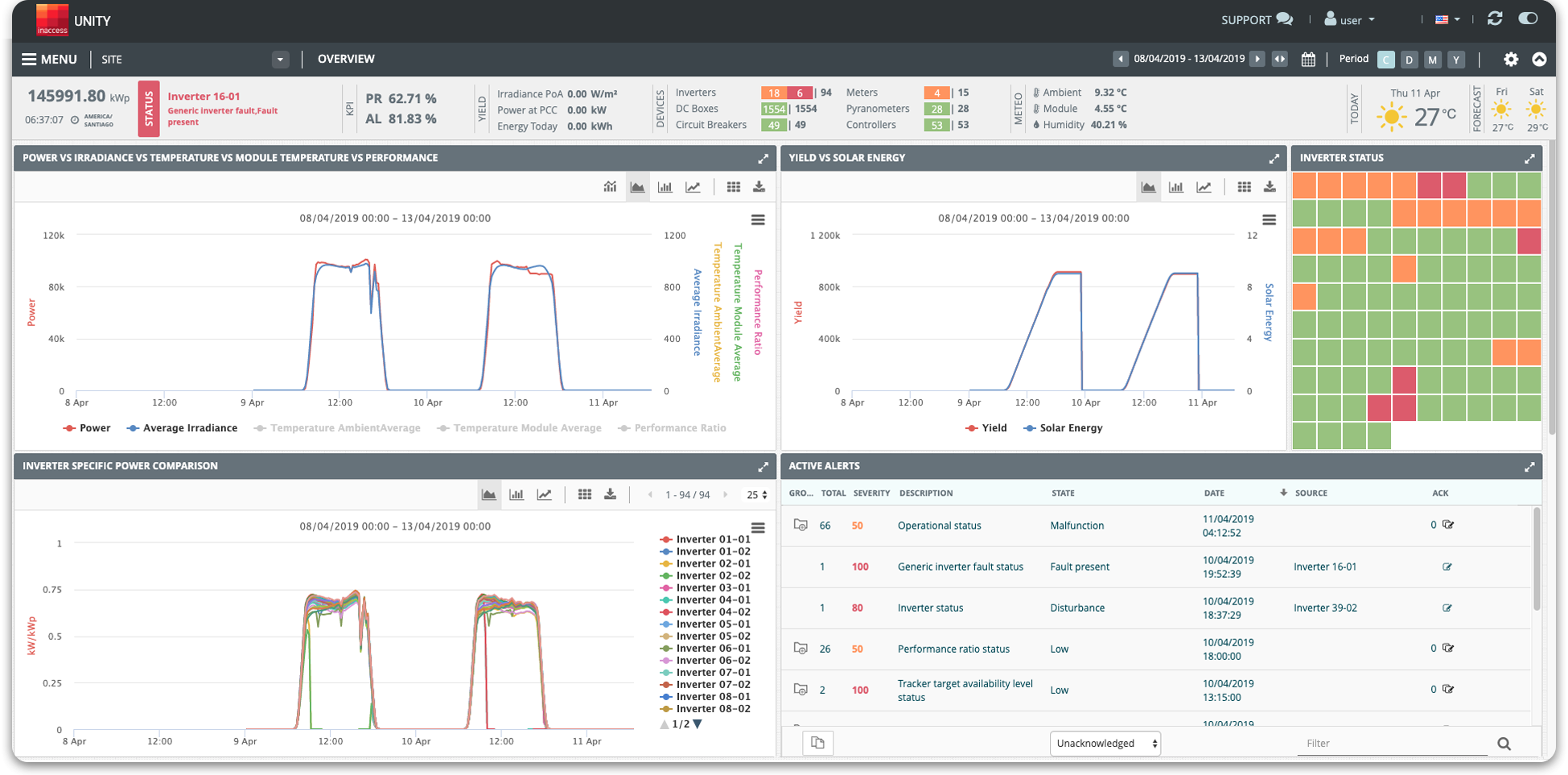

The Unity SCADA platform supports the collection, storage, visualization and post-processing of the whole history of a large variety of types of information for each node of the hierarchical model.
Meaningful results are displayed and recorded at daily, monthly and yearly levels.

*  Primary, Maximum/minimum value, Derived
*  Raw, real-time data
*  Real-time monitored data
*  Status, states & state-change events (upon user request)

Monitored parameters and events

*  String-level monitoring
*  Inverter monitoring
*  Transformer monitoring
*  Point of common coupling monitoring

*  Load connection point monitoring
*  Building monitoring
*  Meteorological station support
*  Reference cell support

Unity SCADA platform User portal

With access from anywhere, anytime, the user receives notifications via SMS or email on the occurrence of critical events.

Supported services through user portal
Notification
Graphing
Exporting
Report generation and delivery
Mobile Web client application
